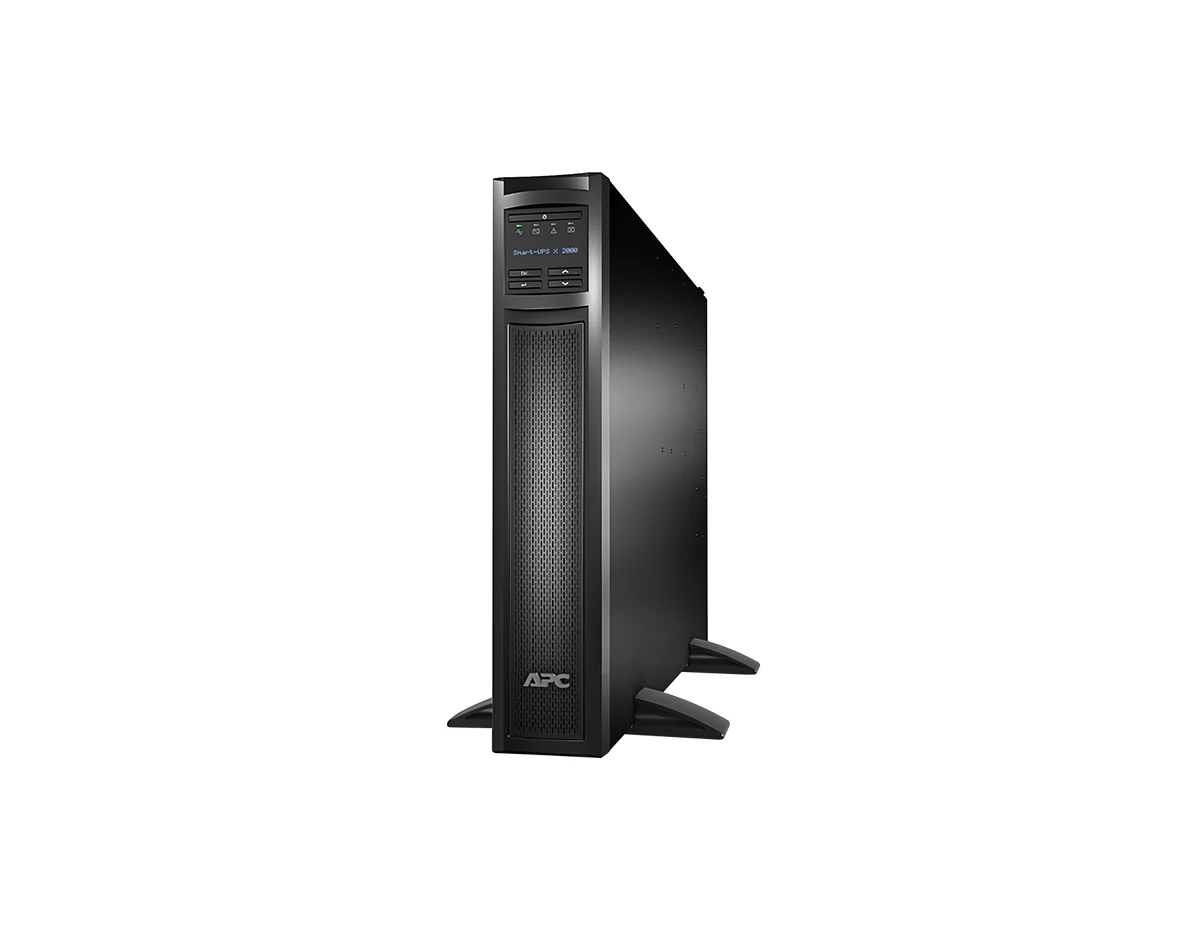

APC SMX2000RMLV2U - Smart-UPS X 2000VA Line-Interactive 2U Rack/Tower
[shortdesc]1920VA / 1800W, Lead-Acid Battery, 2U Rack/Tower Convertible, 3x NEMA 5-15R + 3x NEMA 5-20R + 1x L5-20R Outlets, SmartSlot, AVR, Extended Runtime[/shortdesc]
[properties]
| Brand | APC by Schneider Electric |
| Model | SMX2000RMLV2U |
| Product Type | Line-Interactive UPS (Extended Run) |
| Form Factor | Rack/Tower Convertible 2U |
| Dimensions (H x W x D) | 8.5 cm x 43.2 cm x 66.7 cm (3.35" x 17.01" x 26.26") |
| Weight | 38.45 kg (84.77 lbs) |
| Color | Black |
| Number of Rack Units | 2U |
| Cooling |
[specifications]
| Capacity | 1920 VA / 1800 W |
| Input Voltage | 100V, 110V, 120V, 127V (adjustable: 75–154 V) |
| Input Connection Type | NEMA 5-20P |
| Output Voltage | 100V, 110V, 120V, 127V |
| Output Connections | 3 x NEMA 5-15R, 3 x NEMA 5-20R, 1 x NEMA L5-20R |
| Waveform Type | Sine wave |
| Topology | Line Interactive |
| Transfer Time | 2–4 ms, 4 ms typical, 8 ms max |
| Battery Type | Lead-Acid |
| Battery Recharge Time | 3 hours |
| Battery Life | 3–5 years |
| Replacement Battery | APCRBC117 |
| Battery Charge Power | 229 W rated |
| Surge Energy Rating | 540 J |
| Acoustic Noise | 55 dBA |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 0–95% |
| Altitude | 0–10,000 ft operating |
| Communications | Multi-function LCD, SmartSlot, USB, RS-232, EPO |
| Certifications | BSMI, CSA, NOM, TÜV, VCCI Class A |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
| Equipment Protection Policy | Lifetime: $150,000 |
[accesories]
| Rack Mounting Brackets | Included in the box |
| Rack Mounting Support Rails | Included in the box |
| Removable Support Feet | Included in the box |
| RS-232 Cable | Included in the box |
| USB Cable | Included in the box |
| Installation Guide | Included in the box |
| Documentation CD | Included in the box |
Overview
The APC SMX2000RMLV2U delivers reliable 1920VA / 1800W backup power in a compact 2U rack/tower convertible form. Built with line-interactive topology, Automatic Voltage Regulation (AVR), and pure sine wave output, this Smart-UPS X ensures consistent uptime for servers, network hardware, and storage systems. With extended runtime capability, SmartSlot expandability, and a multi-function LCD interface, it is engineered for critical IT environments requiring both flexibility and efficiency.
Key Features & Benefits
- 1920VA / 1800W Capacity: Provides robust power backup for essential IT systems and networking equipment.
- Line-Interactive Topology: AVR stabilizes voltage fluctuations without draining battery life.
- Pure Sine Wave Output: Delivers clean, reliable power for sensitive IT and network devices.
- Extended Runtime Support: Compatible with external battery packs for longer backup availability.
- SmartSlot Expansion: Allows integration of advanced management cards for remote control and monitoring.
- Multi-function LCD Console: Provides real-time system status, configuration, and diagnostics at a glance.
Technical Deep Dive
The SMX2000RMLV2U leverages line-interactive UPS design with AVR to provide stable power delivery by correcting voltage fluctuations in real-time. This protects connected equipment from sags, surges, and irregularities without constantly engaging the battery, extending its service life while ensuring continuous uptime.
Powered by a sealed lead-acid battery with a 3–5 year design life, it offers a typical 3-hour recharge time. The unit is compatible with APCRBC117 replacement batteries, simplifying maintenance and lifecycle planning. With support for external battery packs, businesses can scale runtime to meet extended outage demands.
Management flexibility is enabled through its SmartSlot, supporting optional network management cards. Coupled with the LCD interface and LED status indicators, administrators gain full visibility and control for proactive power management. Integrated surge protection and multi-pole filtering further ensure clean, uninterrupted power delivery.
Ideal Applications
- Enterprise servers and storage arrays
- Branch offices and distributed IT environments
- Healthcare and retail systems requiring continuous uptime
- Critical network closets and communication infrastructure
Frequently Asked Questions (FAQs)
Q1: How is the SMX2000RMLV2U installed?
A: It is a 2U rack/tower convertible UPS, shipped with rails, brackets, and support feet for flexible deployment in both rackmount and tower setups.
Q2: What performance can I expect?
A: This UPS delivers 1920VA / 1800W with pure sine wave output. Runtime depends on connected load and can be extended with external battery packs. Actual runtime varies by environment, load type, and battery condition.
Q3: How can the UPS be managed?
A: It features a multi-function LCD interface for local management, LED status indicators, and supports SmartSlot expansion for optional network management cards, enabling advanced remote monitoring and control.
